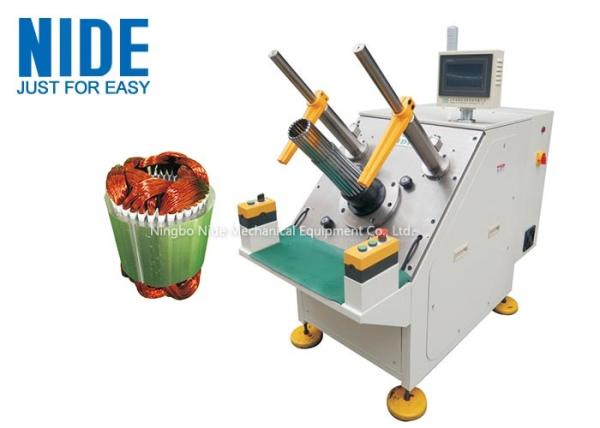

Semi-auto Washing Machine Motor Stator Coil Winding And Wedge Inserting Machine

Name: Semiauto Washing Machine Motor Stator Coil Winding And Wedge Inserting Machine
Brand: Nide
Price: 1 USD

Wholesale Semi-auto Washing Machine Motor Stator Coil Winding And Wedge Inserting Machine from china suppliers

Place of Origin : China

Brand Name : Nide

Certification : None

Model Number : QB1-150/160

MOQ : 1 pc

Price : Negotiable

Packaging Details : Wooden case suitable for sea transportation

Delivery Time : 45 working days

Payment Terms : T/T, L/C

Supply Ability : 120 sets per year

Condition : New

Control method : :PLC

Stator ID : 20~110mm

Tooling travel : :60mm

Weight : 400Kg

After-Sales Service : Overseas Service Center Available

Contact Now

Auto Washing Machine Motor Stator Coil Winding And Wedge Inserting Machine

Quick Detail:

1. Automatically insert the stator coil into stator slot.

2. Simple operation, low noise, fast speed and high automaticity.

3.The winding/coil and wedge/top cover is inserted simultaneously.

4. Wide application

5. PLC and touch screen control.

Discription:

This machine is used to inserting coil and wedge into stator. And it can insert coil and wedge simultaneously. This HMI can set all the necessary data. With easy and convenient tooling change process, this machine is suitable for three phase motor, fan motor and other motor, with a veriety model number but low output.

Technical parameter:

Stator ID: 20~110mm
Stator OD: ≤160mm
Stator height: 20~150mm
Tooling travel: 60mm
Working station: single
Control method: PLC
Wire Material: Copper wire/Alum wire
Slot number range: 8-48 slots
Power supply: 380V/ 50/60Hz
Power: 3Kw
Weight: 400Kg
Dimension: 1500*680*1500mm

Application:

This machine is suitable for three phase motor, fan motor and other motor, with a veriety model number but low output.

Operation step

Power on the machine
Insert the wire by winding form
Adjust the tooling according to different model stator
Put stator to the tooling
Set the stator diameter in the touch screen then select the pre-set data.
Press "start" button.
Machine will automatically do coil inserting.
Take out the stator

Stator made by this coil winding and wedge inserting machine

Semi-auto Washing Machine Motor Stator Coil Winding And Wedge Inserting Machine
