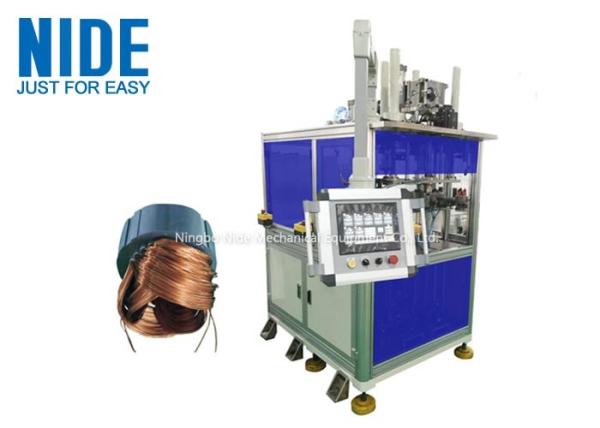

Motor Coil Inserting Machine Automatic winding inserting machine
This automatic coil inserting machine adopts movable winding inserting tooling with three working station. One is used to equip with mechanical arm to transfer the coil to the station. The second one is used to cut and form wedge. The third one is used to do coil and wdge inserting. This coil inserter is with single-tooth wedge protective function and two sides'mechanical loading and unlaoding function. It can transfer the stator to the automatic stator prodcution line. The working efficacy is very high with three working station.
(1) Main technical data
| Production name: | Q3L1-75/130T automatic stator coil inserting machine |
| Stator stack length: | 30~120mm |
| Stator OD: | ≤150mm |
| Stator ID: | 50~120mm |
| Wire diameter: | 0.18~1.2mm |
| Air source: | 0.6~0.8Mpa |
| Power supply: | 380V 50/60HZ 11KW |
| Deminsion: | 2550mm(L)X 2230mm(W)X2300mm(H) |
| Weight: | 3500KG |
(2) Application:
The automatic stator coil inserting machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.
(3) Information needed for stator production line inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Stator winding drawing
4. Winding distribution drawing
5. Wedge and insulation paper drawing and its material
6. Stator application
7. Required productivity
8. Other technical requirement
If possible, it will be better if customer can send us samples.
This machine has touch screen. All the parameter can be set in the touch sceen. The machine has alarm function. Operator can check the malfuction in the touch screen shown as below picture.
